IL300-143 Solar road stud light

Security feature: With 6 aluminum alloy safety locks
Size: φ143*47mm/φ5.63*1.85in
Battery: LiFePO4 1000mAh*3.2V
Load capacity: >80T
LED color:
Share
Introduction
Product introduction

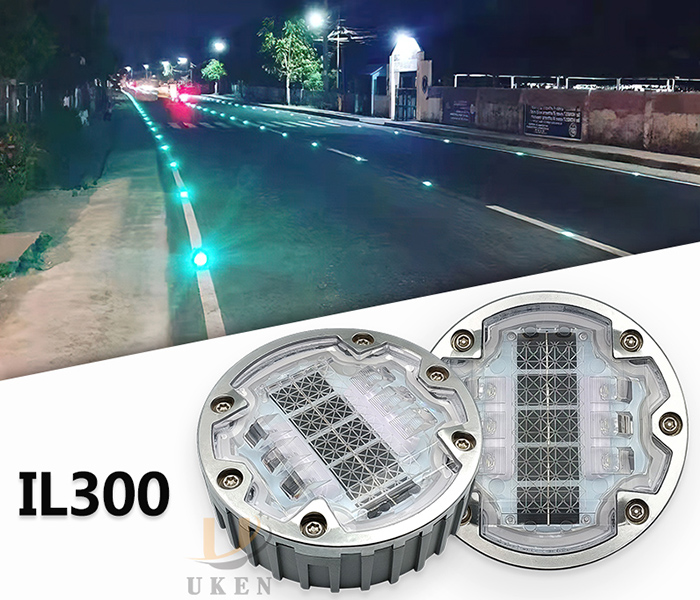

This is the IL300 solar road stud light (popular in the Philippines), with 6 safety locks, powered by a silicon panel, covered in plastic, and covered in aluminum, which gives it a load capacity of 80 tons. You can contact us for the Stress Resistant Report. This solar stud light can be installed on the highway(freeways). LED lights are best sellers in white. we also provide yellow, red, green, blue and other colors. The viewing distance is more than 800 meters, and it is IP68 waterproof. We have both Lithium and Ni-MH battery options. Lithium has small size, light weight, low self-discharge rate, large capacity, life expectancy of 5-8 years, and high price. Ni-MH batteries are resistant to both high and low temperatures, but their lifespan is somewhat lower compared to lithium batteries, resulting in a lower price.

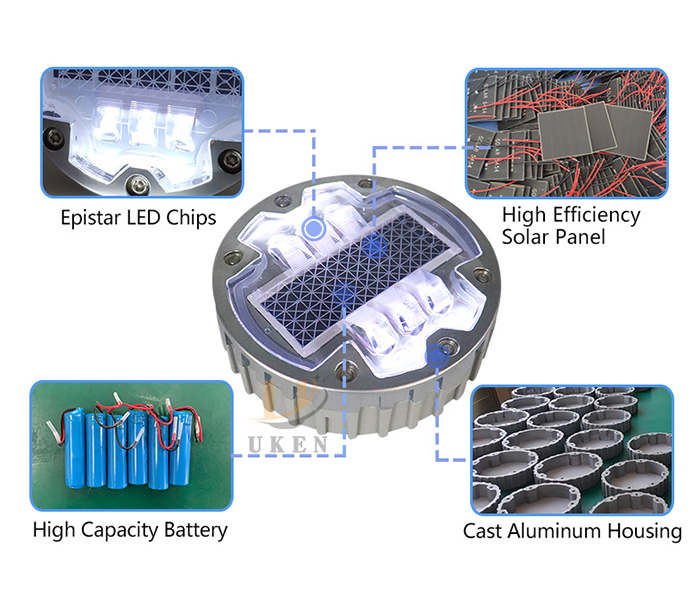

Features
1. Anti-theft screws
Anti-theft screws for solar road studs provide enhanced security by preventing unauthorized removal, ensuring the longevity and effectiveness of the road safety devices.
01
3. Imported PC materials
Imported PC shells for solar road spikes offer superior durability, impact resistance, and optical clarity, ensuring long-lasting and effective road safety solutions.
03
2. Aluminum housing
Aluminum housing for solar road studs offers a lightweight yet durable solution, providing corrosion resistance and stability for long-lasting and reliable road safety installations.
02
4. LED lamp beads
LED lamp beads for solar road studs provide energy-efficient illumination, enhancing visibility and road safety, while contributing to sustainable and cost-effective roadway solutions.
04
Specification
Size :
φ143*47mm/φ5.63*1.85in
Material :
ADC12 Cast Aluminum+Japan made PC
Protection Class :
IP68
Battery:
NI-MH 1.2V 600mAh Battery LiFePO4 Lithium 3.2V 1000mAh
Flashing mode :
Flashing (2Hz±20%) or steady lighting
Working mode :
Charge at daytime/ work at night
Power Supply :
Mono-crystalline solar panel 5V/120mA
Light Source :
6pcs F10 ultra bright LED chips
Light Color :
White/Green/Red/Yellow/Blue
Full Charging Time :
8 Hours under standard sunlight
Load capacity :
>80T
Lifespan :
4-6 years for NI-MH Battery 6-8 years for Lithium Battery
Working Hours :
166 hours (lithium battery flashing mode)
Installation Method :
Ground recessed
Installation examples
The installation of solar road studs requires professional operators, which can reduce road damage and also has a longer service life.
install solar road stud
1. Mark the position
Determine installation location based on measurements
install solar road stud
2. Drill the hole
Use professional drilling machines for drilling operations
install solar road stud
3. Clean the hole
Dry and Clean the perforated pavement
install solar road stud
4. Put the glue
Pour the prepared epoxy glue into the hole in the required proportion
install solar road stud
5. Mount road studs
Put the solar road stud into the hole and press it to fix it, and finally clean the road surface
