Home > Products > Reflective road stud > UK-B002 Reflective road stud

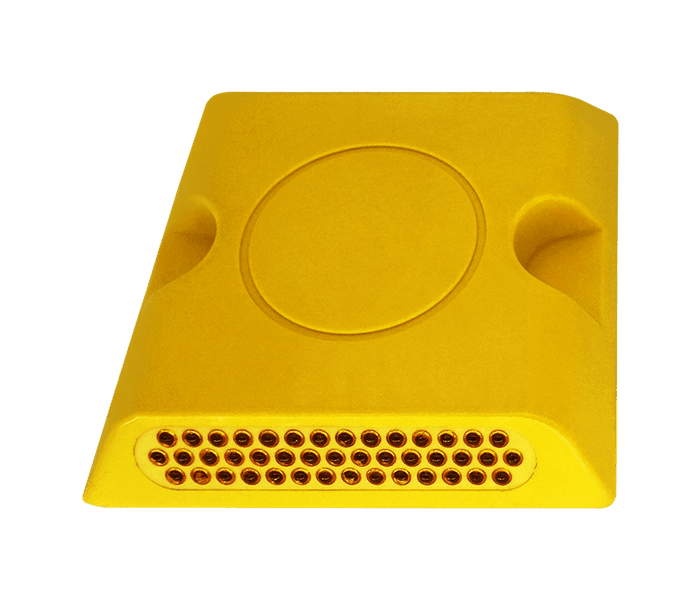

UK-B002 Reflective road stud

Color:Red/Yellow/White/Blue/Green
Size: 100*100*18mm
Material: Aluminum(ABS) Body+Glass Bead
View Distance: 500m
LED color:
Share
Introduction
Product introduction
Aluminum reflective road studs, constructed from durable aluminum alloy, are crucial elements in enhancing road safety, particularly in low-light conditions. Equipped with advanced reflective components, such as glass beads or micro prismatic sheets, these road studs ensure heightened visibility by reflecting incident light from vehicle headlights. Their compact and sturdy design, available in various colors, allows for effective delineation of lanes, indication of turns, and overall traffic guidance. Installation methods include anchoring bolts or epoxy adhesives, providing a secure attachment to road surfaces. Not only are these road studs weather-resistant and corrosion-proof, but they also meet international standards, ensuring their reliability and effectiveness in diverse traffic scenarios. With applications ranging from highways to urban roads, these cost-effective and low-maintenance road studs significantly contribute to road safety, guiding traffic efficiently and preventing accidents. Moreover, their environmental considerations, such as recyclability, position them as sustainable solutions in modern transportation infrastructure.
FEATURES
1. Reflector-embedded design reduces vehicle friction.
01
3.Epoxy resin solid seal, anti-pressure 20T.
03
5.Housing material GB-ADC-12 aluminum ingot, strong corrosion resistance.
05
2.The reflector adopts a Japanese high-precision reflective mold core in accordance with the ASTM-4280 standard.
02
4.One-piece die-casting nail surface, more solid installation.
04
SPECIFICATION
Material:
Aluminum Body+Glass Bead
Size:
100*100*20+50mm
Net Weight:
230g/350g
Reflector Color:
Red/Yellow/White/Blue/Green
Glass Bead Qty:
43pcs
View Distance:
500m
Carton G.W.:
24/36kg/ctn(100pcs/ctn)
Carton Size:
47*32*31cm
Installation examples
The installation of reflective road studs requires professional operators, which can reduce road damage and also has a longer service life.
1.Mark location
Mark the correct installation location on the road and clear it (generally 3m apart).
2.Mix glue
Mix the glue thoroughly,and Pour the glue into the installation location.
3.Install
Clean the bottom of the solar spike and place it on top of the glue.
4.Finish
The road where road studs are installed needs to be closed to traffic for 6-8 hours to allow the solar road studs to fully bond with the road surface.
