UK-G105 Solar road stud light

Protection Class: Waterproof IP68

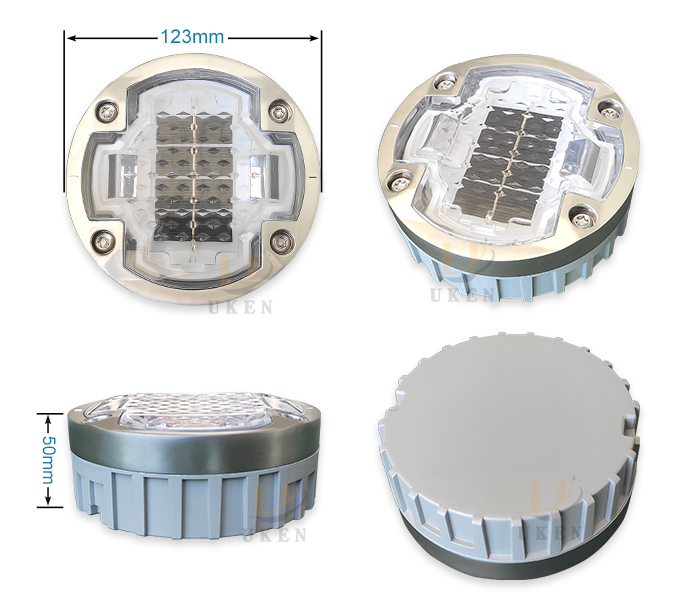

Size: φ123*50mm/4.92*1.97mm
Battery: NI-MH 1.2V/600mAh
Load capacity: >80T
LED color:
Share
Introduction
Product introduction
This is the IL300 solar road stud light (popular in the Philippines), with 6 safety locks, powered by a silicon panel, covered in plastic, and covered in aluminum, which gives it a load capacity of 80 tons. You can contact us for the Stress Resistant Report. This solar stud light can be installed on the highway(freeways). LED lights are best sellers in white. we also provide yellow, red, green, blue and other colors. The viewing distance is more than 800 meters, and it is IP68 waterproof. We have both Lithium and Ni-MH battery options. Lithium has small size, light weight, low self-discharge rate, large capacity, life expectancy of 5-8 years, and high price. Ni-MH batteries are resistant to both high and low temperatures, but their lifespan is somewhat lower compared to lithium batteries, resulting in a lower price.

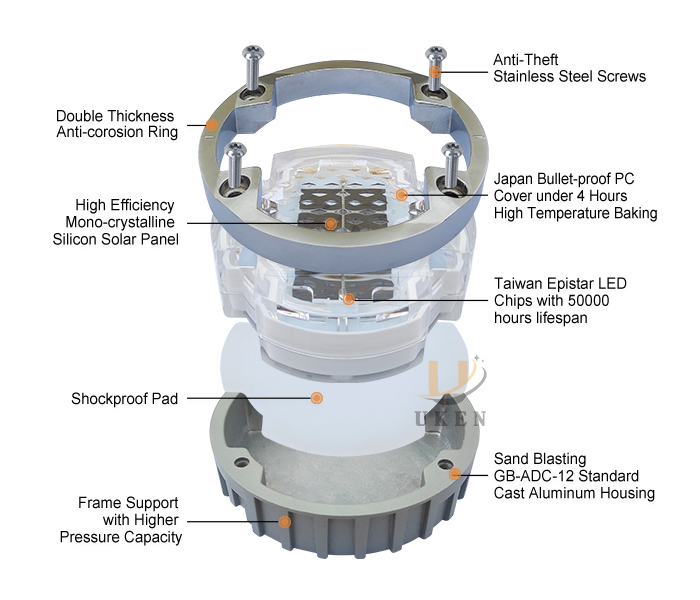

Features
1.Anti-theft screws
Installing anti-theft screws for solar road stud lights ensures security, preventing unauthorized removal and safeguarding valuable assets. This minimizes the risk of theft, vandalism, and unauthorized access, contributing to the longevity and effective operation of the solar road studs.
01
3.LED lamp beads
Solar road studs with ultra-bright LED lamp beads provide enhanced visibility, ensuring safety on roads. Their brightness improves road awareness, reducing accidents, and their energy efficiency ensures sustainable and cost-effective operation.
03
2.Aluminum housing
The aluminum shell of solar road studs offers durability, corrosion resistance, and lightweight design, ensuring longevity, low maintenance, and reliable performance in various environmental conditions.
02
4.Solar panels
Solar panels offer renewable energy, reducing electricity bills and environmental impact. They have low operating costs, enhance property value, and contribute to energy independence. Government incentives and job creation in the solar industry make them an attractive, scalable, and eco-friendly power solution.
04
Specification
Size :
φ123*50mm/φ4.92*1.97mm
Material :
Cast Aluminum+PC
Protection Class :
Waterproof IP68
Working Mode :
Charging at daytime and working automatically at night
Flashing Mode :
Constant or flashing
Battery :
Ni-Mh 1.2V/600mAh/Lithium 3.2V/1000mAh
Power Supply :
Mono-crystalline Solar panel 2.5V/120mA/0.3W
Light Source :
6pes F5 Ultra bright LED Chips (brightness>5000mcd)

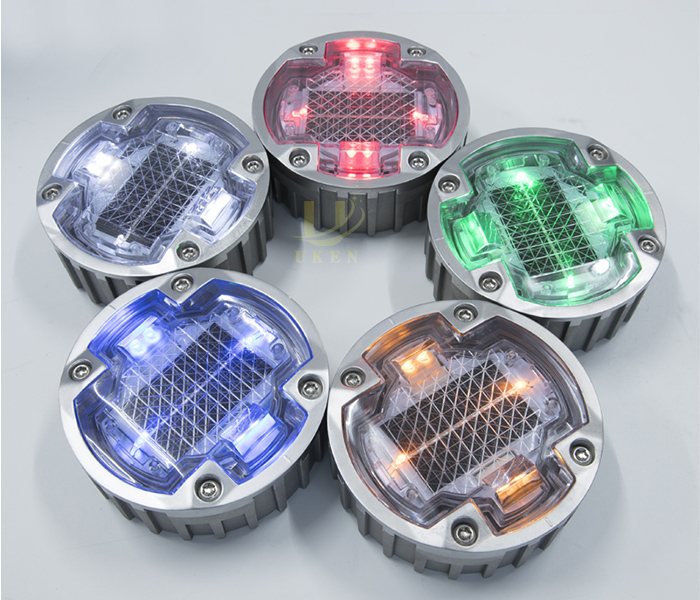

Light Color:
Red,Yellow,Green,Blue,White
Full Charging Time :
8 hours under standard sunlight
Load Capacity:
>80T(can be installed in the middle of road)
Visual Distance:
>800m
Working Hours :
166 hours (lithium battery flashing mode);
Lifespan :
4-6 years for NI-MH battery; 6-8 years for Lithium battery;
Installation examples
The installation of solar road studs requires professional operators, which can reduce road damage and also has a longer service life.
install G105
1. Mark the position
Professionals draw the installation location on the road.
install G105
2. Drill the hole
Use a punching machine to punch holes
install G105
3. Clean the hole
Clean the gravel left by drilling in the hole,and dry it.
install G105
4. Put the glue
Pour glue into the holes in a certain proportion.
install G105
5. Mount road studs
Put the road spike into the hole and press it firmly.
