Home > Products > Solar road stud light > UK-HS-01 Solar road stud light

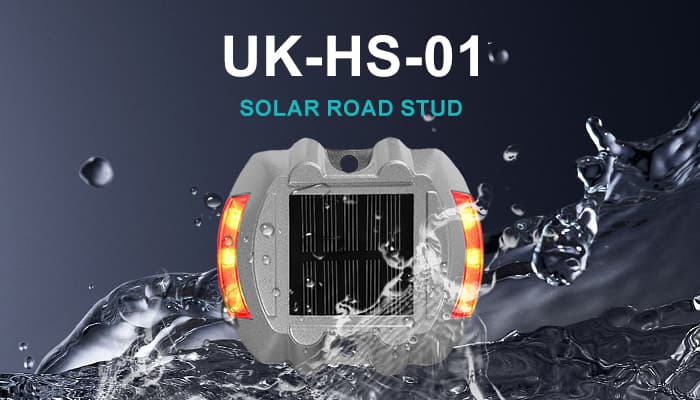

UK-HS-01 Solar road stud light

Protection Class: Waterproof IP68
Size: 108*97*25mm/4.25*3.81*0.98in
Battery: NI-MH 1.2V/600mAh
Load capacity: >20T
LED color:
Share
Introduction
Product introduction
Solar road studs are innovative, self-contained devices designed to enhance road safety and visibility. Integrated with solar panels, these compact studs harness sunlight during the day, converting it into energy to power high-intensity LEDs during the night or in low-light conditions. Often embedded directly into road surfaces, they serve as effective lane markers, guiding drivers with clear illumination. Reflective properties further enhance visibility, ensuring their effectiveness even when LEDs are not actively lit. Durable and weather-resistant, solar road studs offer a sustainable and cost-effective solution for improving road safety, particularly in areas where conventional lighting may be challenging to install or maintain. Their autonomous operation and easy installation make them a valuable addition to modern road infrastructure.
Features
1.LED lamp beads
Solar road studs with ultra-bright LED lamp beads provide enhanced visibility, ensuring safety on roads. Their brightness improves road awareness, reducing accidents, and their energy efficiency ensures sustainable and cost-effective operation.
01
3.Aluminum housing
The aluminum shell of solar road studs offers durability, corrosion resistance, and lightweight design, ensuring longevity, low maintenance, and reliable performance in various environmental conditions.
03
2.Solar Panel
Solar panels on top of solar road stud lights enable energy self-sufficiency, providing a sustainable and cost-effective power source for illumination without relying on external electricity grids.
02
4.Anti-slip design
Anti-slip design on solar road stud lights enhances safety and prevents accidents by providing secure footing for pedestrians and vehicles, especially in adverse weather conditions.
04
Specification
Size :
108*97*25mm/4.25*3.81*0.98in
Material :
Cast Aluminium+PC
Protection Class :
Waterproof IP68
Working Mode :
Charging at daytime and working automatically at night
Flashing Mode :
Constant or flashing
Battery :
NI-MH 1.2V/600mAh
Power supply :
Mono-crystalline Solar panel 2.5V/0.25W
Light Source :
4pcs or 6pcs ultra bright LED Chips
Light Color :
Red,Yellow,Green,Blue,White
Full Charging Time :
8 hours under standard sunlight
Load Capacity :
>20T
Visual Distance :
>800m
Lifespan :
4-6 years
Package:
60pcs/carton; G.W.:19kg;
Installation examples
The installation of solar road studs requires professional operators, which can reduce road damage and also has a longer service life.
install G105
1. Mark the position
Determine installation location based on measurements.
2. Mix glue
Mix the prepared glue together in a certain proportion and stir thoroughly.
3. Apply glue
Apply the glue evenly on the surface of the solar road stud.
4. Install
Install the solar road studs on the clean road surface and press carefully to make them fully adhere to the ground.
5. Finish
The road where solar road studs are installed needs to be closed to traffic for 6-8 hours to allow the solar road studs to fully bond with the road surface.
