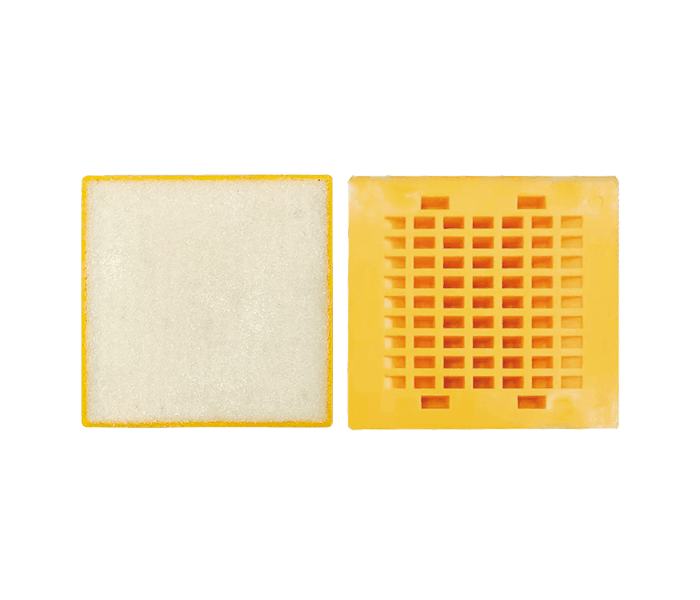

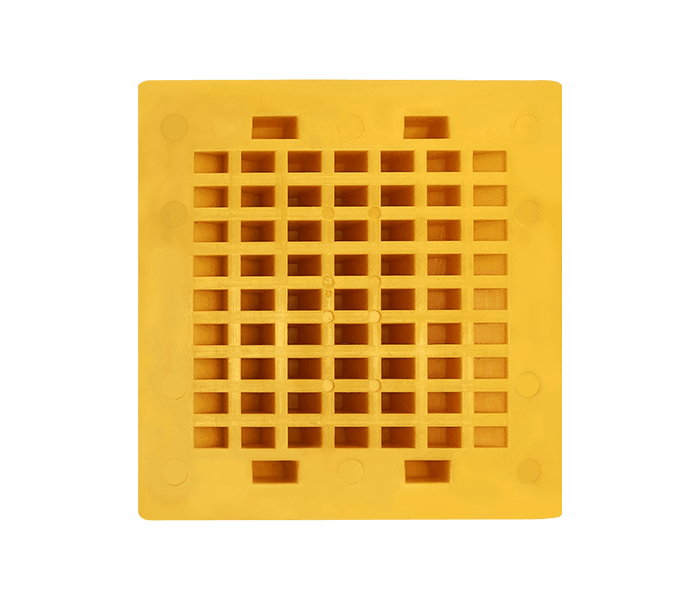

UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud
UK-R001 Reflective road stud

UK-R001 Reflective road stud

Color:Red/Yellow/White/Blue/Green
Size: 100*100*18mm
Material: ABS+PMMA
Net Weight: 190g/ 90g
LED color:
Share
Introduction
Product introduction
The reflective road stud stands as an integral element of modern road safety, designed to enhance visibility and guide drivers through various traffic scenarios. This compact and durable device, typically embedded in road surfaces, features advanced reflective technology that ensures optimal visibility during low-light conditions. Whether delineating lanes, marking crosswalks, or highlighting potential hazards, reflective road studs play a crucial role in guiding motorists safely. Constructed with robust materials to withstand the demands of daily road use, these studs provide a long-lasting and reliable solution for improving road safety. Their reflective properties, often achieved through glass or microprismatic technology, contribute to their effectiveness in conveying important visual cues. As a vital component of intelligent transportation infrastructure, reflective road studs play a pivotal role in creating safer and well-guided roadways for drivers and pedestrians alike.
FEATURES
1. Reflective brightness in line with ASTM-480, EN1 469.
01
3. ABS material improves weather resistance.
03
5. Ultrasonic welding, protection grade IP68.
05
2. Epoxy resin filling, anti-pressure 20T.
02
4. Reflector PMMA material, Japan reflective mold core.
04
SPECIFICATION
Material:
ABS+PMMA
Size:
100*100*18mm
Net Weight:
190g/90g
Color:
Red/ Yellow/ White/ Blue/ Green
View Distance:
Over 500m
Standard:
ASTM D4280 & EN1463- 1
Filling:
Epoxy Resin+Quartz Sand
Carton G.W.:
20/10 kg/ctn(100 pcs)
Carton Size:
56*22.5*22.5cm
Installation examples
The installation of reflective road studs requires professional operators, which can reduce road damage and also has a longer service life.
1.Mark location
Mark the correct installation location on the road and clear it (generally 3m apart).
2.Mix glue
Mix the glue thoroughly,and Pour the glue into the installation location.
3.Install
Clean the bottom of the solar spike and place it on top of the glue.
4.Finish
The road where road studs are installed needs to be closed to traffic for 6-8 hours to allow the solar road studs to fully bond with the road surface.
