UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud
UK-R003 Reflective Road Stud

UK-R003 Reflective road stud

Color:Red/Yellow/White/Blue/Green

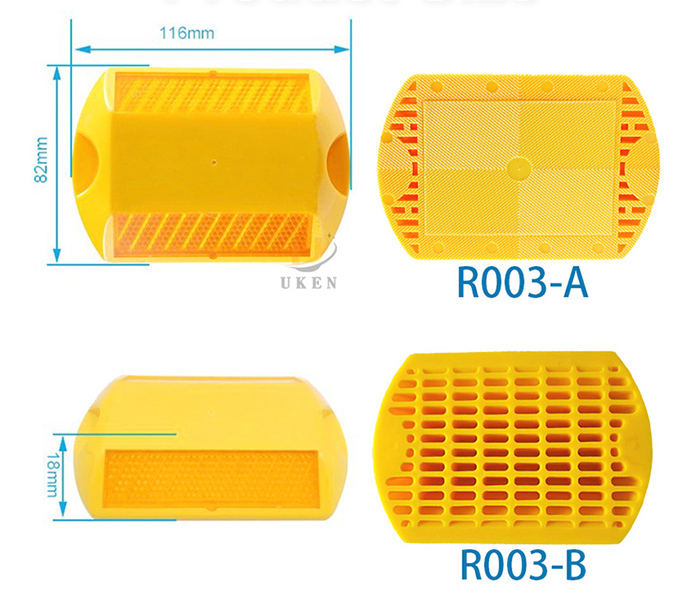

Size: 116*82*18mm
Material: ABS+PMMA
Net Weight: 78g/ 90g
LED color:
Share
Introduction
Product introduction
Plastic reflective road studs, composed of high-quality, impact-resistant polymers, serve as essential elements in promoting road safety, particularly in low-light conditions. Designed with reflective components, these road studs are available in various types, including embedded and surface-mounted variants, catering to specific road design needs. Their streamlined and durable construction, resistant to impact and adverse weather conditions, ensures longevity. With a spectrum of colors and embedded reflective features, plastic road studs effectively delineate lanes, mark crossings, and enhance overall visibility, contributing significantly to road safety on highways, urban roads, and other critical locations. Adhering to international standards, these cost-effective and low-maintenance road studs play a pivotal role in sustainable and efficient transportation infrastructure.
FEATURES
1. Reflective plate non-vacuum plating, to improve the reflective brightness.
01
3. Polymer material, anti-pressure 20T.
03
5. PMMA material, anti-UV, high hardness.
05
2. Japanese reflective mold core, in line with ASTM-4280.
02
4. Unique ultrasonic line design, high impact resistance.
04
SPECIFICATION
Material:
ABS+PMMA
Size:
116*82*18mm
Net Weight:
78g/ 88g
Color:
Red/ Yellow/ White/ Blue/ Green
Load Capacity:
17 ton/30 ton
Standard:
ASTM D4280 & EN1463- 1
Reflector:
Micro Prism Structure
Carton G.W.:
20 kg(200pcs/ctn)
Carton Size:
45*28*23.5cm
Installation examples
The installation of reflective road studs requires professional operators, which can reduce road damage and also has a longer service life.
1.Mark location
Mark the correct installation location on the road and clear it (generally 3m apart).
2.Mix glue
Mix the glue thoroughly,and Pour the glue into the installation location.
3.Install
Clean the bottom of the solar spike and place it on top of the glue.
4.Finish
The road where road studs are installed needs to be closed to traffic for 6-8 hours to allow the solar road studs to fully bond with the road surface.
