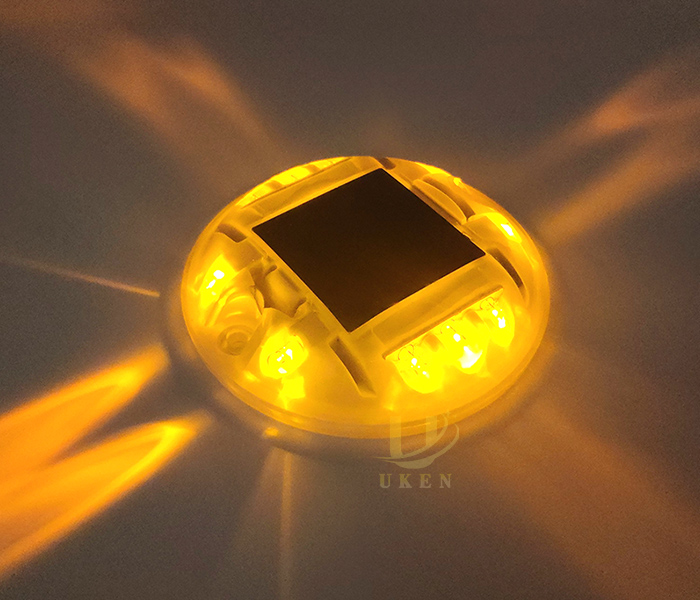

UK-Y1 Solar road stud light

Material: Japan Bullet-proof PC
Size: φ120*25mm/φ4.72*0.98in
Protection Class: Waterproof IP68
Load capacity: >20T
LED color:
Share
Introduction
Product introduction
A solar road stud is a small, self-contained device designed for road safety and visibility, particularly during low-light conditions or nighttime. It incorporates solar panels, LED lights, and other electronics to provide illumination. Key features include: Solar-Powered: Solar road studs have built-in solar panels that capture sunlight during the day, converting it into energy to power the LED lights at night. LED Illumination: High-intensity LEDs are used to provide clear and visible guidance for drivers and pedestrians. These LEDs are energy-efficient and offer long-lasting illumination. Reflective Properties: Many solar road studs have reflective properties, ensuring visibility even when the LEDs are not actively illuminated. This enhances safety during various weather conditions. Durability: These devices are designed to withstand the rigors of road use, including exposure to traffic, weather elements, and other environmental factors. Easy Installation: Solar road studs are often easy to install, requiring minimal disruption to road surfaces. They can be embedded directly into the road or attached to the surface. Autonomous Operation: Equipped with light sensors, solar road studs can automatically turn on in low-light conditions and turn off during the day, optimizing energy usage. These studs serve multiple purposes, including marking lanes, indicating turns, and enhancing overall road visibility, contributing to improved road safety and navigation. They are commonly used in various road settings, including highways, urban roads, and pedestrian walkways.

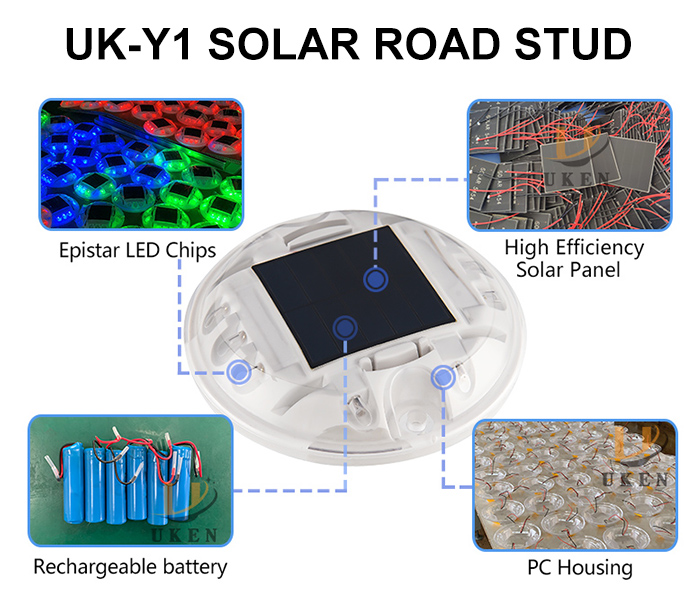

Features
1. LED lamp beads
Solar road stud LED lamp beads offer energy-efficient illumination, enhancing visibility, road safety, and sustainability for cost-effective and eco-friendly roadway solutions.
01
3. Screw holes
During installation, in addition to using glue to adhere to the ground, screws can also be used for reinforcement.
03
2. Solar Panel
Solar panels harness renewable energy from the sun, providing a sustainable, eco-friendly power source that reduces electricity bills and environmental impact.
02
4. plastic shell
Imported plastic housings for solar road studs offer superior durability, weather resistance, and a sleek design, ensuring long-lasting and efficient road safety solutions.
04
Specification
Size :
φ120*25mm/φ4.72*0.98in
Material :
Japan Bullet-proof PC
Protection Class :
Waterproof IP68
Working Mode :
Charging at daytime and working automatically at night
Flashing Mode :
Constant or flashing
Battery:
NI-MH 1.2V/600mAh/Lithium 3.2V 1000mAh;
Power Supply :
USA Solar panel 2.5V /0.25W
Light Source :
10pcs Ultra bright LED Chips

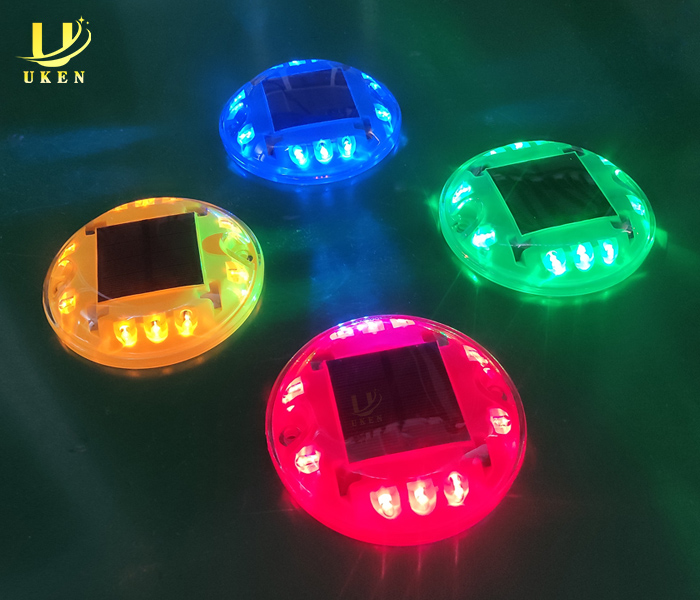

Light Color :
Red,Yellow,Green,Blue, White
Full Charging Time:
8 hours under standard sunlight
Load Capacity :
>20T
Visual Distance :
>1000m
Lifespan :
4-6 years for Ni-Mh type; 6-8 years for lithium type;
Working hours :
166 hours (Lithium battery flashing mode);
Package :
60pcs/carton; G.W.:19kg;
Carton Size :
67.5*29*21cm

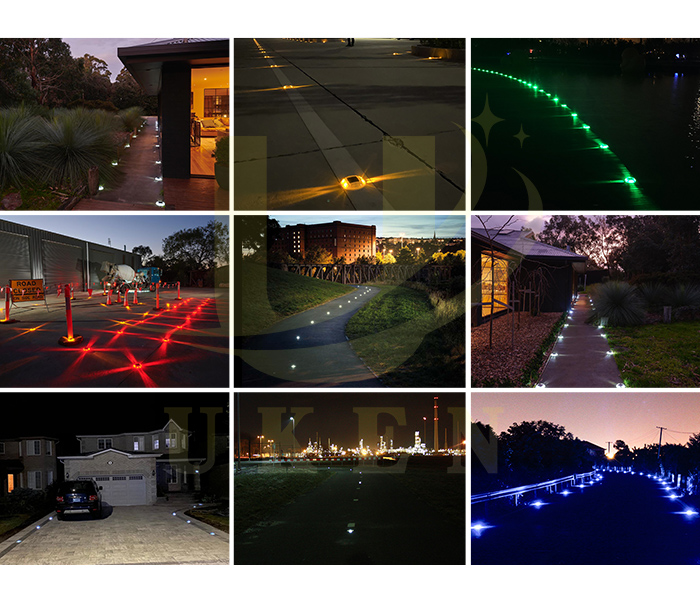

Installation examples
The installation of solar road studs requires professional operators, which can reduce road damage and also has a longer service life.
install G105
1. Mark the position
Determine installation location based on measurements.
2. Mix glue
Mix the prepared glue together in a certain proportion and stir thoroughly.
3. Apply glue
Apply the glue evenly on the surface of the solar road stud.
4. Install
Install the solar road studs on the clean road surface and press carefully to make them fully adhere to the ground.
5. Finish
The road where solar road studs are installed needs to be closed to traffic for 6-8 hours to allow the solar road studs to fully bond with the road surface.
